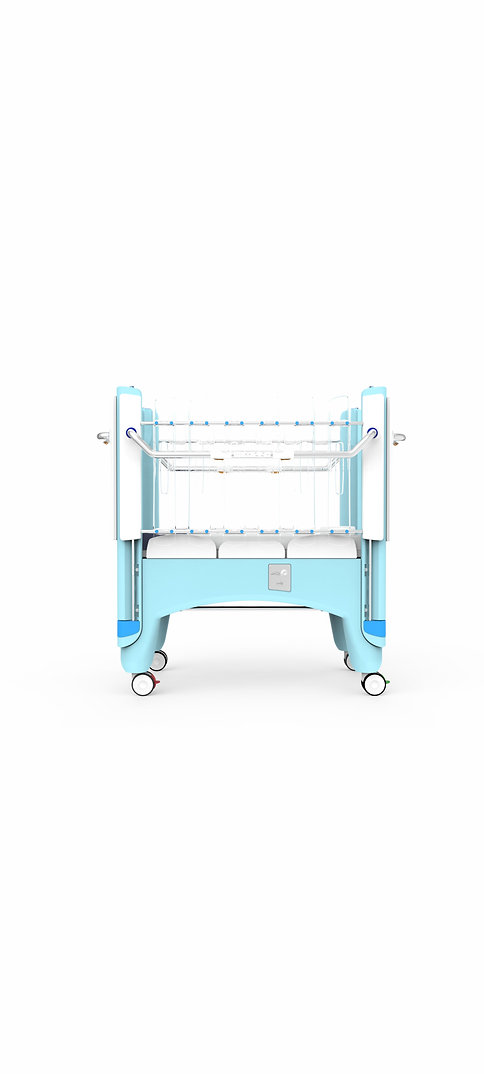

symba paediatric hospital bed manual

introduction
Symba was developed through extensive technical and market research.
​
It goes beyond current cot-beds; offering a safe, mobile and accessible product tailored for both patients and medical professionals.

features
cotside drop down system
Cotsides are controlled using a dual locking spring system:
-
allows user to position cotside in four safety configurations
-
system engages and indicates when the cotside is secure
-
dual locking system ensures cotsides are properly locked into place
-
cotsides can be lowered quickly in an emergency situation
​
seamless design
Rotational moulded main components are:
-
easy to clean
-
seamless design reduces the chances of lingering infections hiding in crevices

features
accessibility and modular configurations
The mattress cradle can be configured into:
-
various positions essential for recovery including a semi-fowlers and high fowlers position
-
quick access to change position and adjust the
-
mattress support
-
lockable gas springs provide an easy to position yet strong lock on the cradle position
-
easy to set up Trendelenburg position
-
patient visibility
Clear cotside panes provide excellent visibility of patient
​
-
patients feel less constrained by cot and environment
-
better monitoring of children
-
child can engage with parents, medical professionals and other patients

features
colour range
bright colours bring life to hospital rooms.
​
mobility
kick stop medical grade casters:
-
swivel casters mean a smooth and comfortable journey
-
four individually lockable total and directional lock casters for ultimate control
-
easy to manoeuvre
​
accessories are easily attached
the bed has 4/2 attachment port configuration for:
-
various accessories
-
this means the bed becomes a holistic solution to everyday problems faced in wards

specifications
dimensions
1720mm
length:
1675mm
height:
1150mm
width:
typical information
1315mm x 800mm
Mattress maximum dimensions:
​100mm
Mattress maximum height:
75mm
Mattress recommended height:
1400mm x 870mm
Cradle dimensions:
manual - gas spring assisted
Head section inclination (type):
0º - 65º
Head section inclination (range):
manual - gas spring assisted
Foot section inclination (type):
0º - 20º
Foot section inclination (range):
0º - 8º (reverse Trendelenburg possible
through bed rotation)
Trendelenburg movement:
800mm (DIN 32623:2009-11)
Cotside height above mattress cradle:
725mm
Cotside height above 75mm mattress:
90kg
Safe working load:
125mm
Caster diameter:
compliance and safety
compliance and safety
CE marked according to EU medical devices
directive 93/42/EEC MDD & compliance with:
EN ISO 14971:2012 (Application of risk management to medical devices)
EN 62366:2015 (Application of usability engineering to medical devices)
DIN 32623:2009-11 (Hospital children’s cots made from metal and plastic)
pricing
Pricing for the Symba Paediatric Hospital Bed depends on your region and user specification. Please contact us directly to inquire about pricing or for information on your regional distributor. We work closely with our distributors and sales partners.
